Description
What the JQG7505 is and where it fits

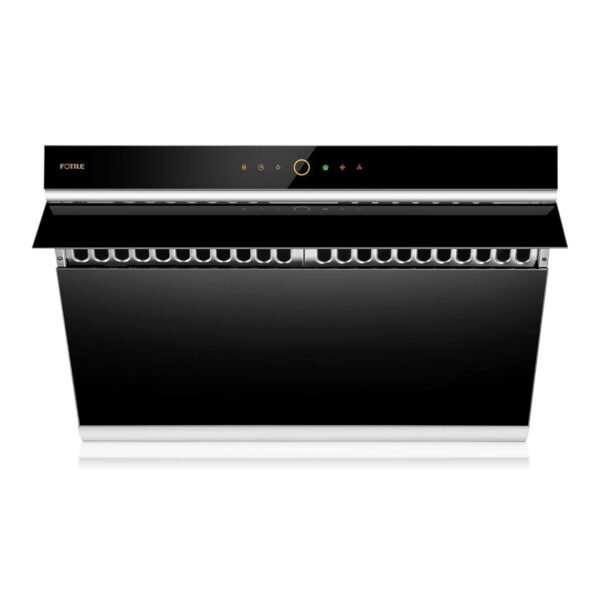

This is a slant vent range hood, which is a different shape from the flat canopy most kitchens have. The face angles down toward the cook rather than sitting parallel to the ceiling, which puts the capture area closer to the front burners where most of the steam and smoke actually rises. FOTILE builds it in onyx black glass and stainless steel at 30 inches wide, weighing 63.9 pounds, and it mounts either under a cabinet or directly to a wall. The listing states it is ducted, and a duct kit is included along with the filter, oil tray and mounting bracket, so the box contains what an installer needs.
Living with it day to day
Two published numbers dominate this listing and they need reading together rather than separately. FOTILE rates the airflow at 1000 cubic feet per minute and the noise at 38.5 decibels. Those two figures cannot describe the same operating point: 38.5 decibels is a very quiet room, and no hood moving 1000 cubic feet per minute is that quiet. The listing does not say which speed each figure applies to, and the reasonable reading is that the airflow is the maximum of four speeds and the noise is the minimum. Anyone choosing this hood on the noise figure should ask FOTILE which speed it refers to, because the difference between speed one and speed four on a hood like this is substantial.

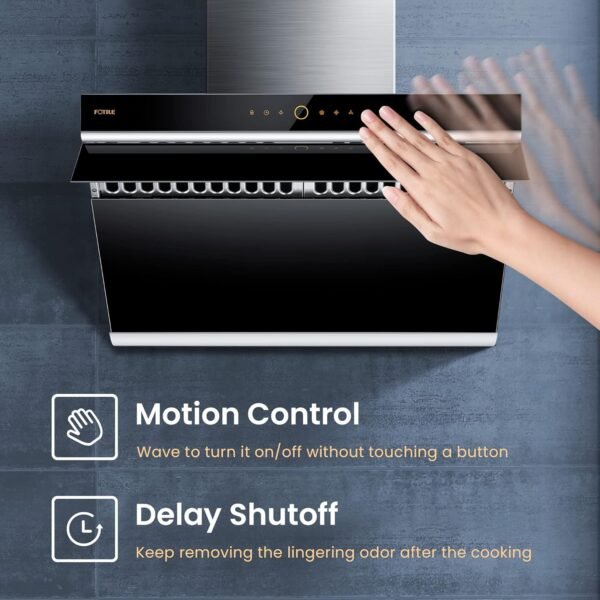

Hands free operation is the feature people notice daily: a motion sensor turns the hood on and off with a wave, which matters because the touchscreen sits directly above a cooking surface and hands at that moment are usually greasy. Four speeds, LED lighting and an auto fan shut off complete the control set. Baffle filters are specified rather than mesh, and that is the better choice: baffles are stamped metal, they separate grease by making the air change direction, and they go in a dishwasher, where mesh filters clog and need soaking. A removable oil tray collects what the baffles shed. Anyone weighing a hood against an over the range microwave such as the GE JVM3160DFCC should note that the microwave’s fan is rated at less than a third of this airflow.
Controls and connected features

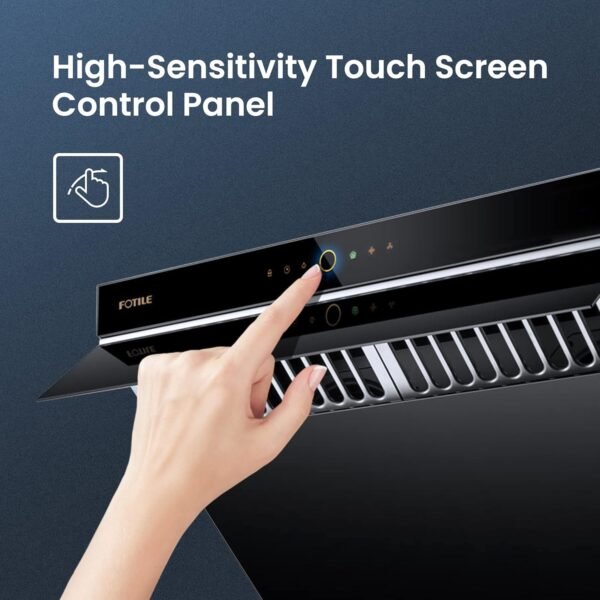

The controls are a touchscreen with four speed levels plus the motion sensor, and nothing in this listing describes WiFi, an app or any connected platform. For a range hood that is entirely sensible: a hood is operated while standing in front of it, and remote control solves no real problem. There is no account, no firmware and nothing that can be discontinued, so the hood will behave the same in fifteen years as on the day it went up.
The auto fan shut off is the closest thing to automation here, running the fan on after cooking stops to clear residual steam and then switching off by itself. That is a genuinely useful behavior because most people turn a hood off too early. A touchscreen above a cooking surface will need wiping regularly, which is exactly why the motion control exists, and it is worth noting that a glass touch panel has no mechanical fallback if it fails.
Running cost and upkeep
The electrical data here is complete, which is rare in this catalog: 120 volts, 60 hertz, 210 watts, with HVI and ETL certifications listed. That is an ordinary North American supply and a modest load. FOTILE also publishes an annual energy consumption figure of 100 kilowatt hours, which allows an actual running cost to be worked out rather than guessed. There is no gas connection and no plumbing.
Ducting is where the real work lies. This is a ducted hood, not a recirculating one, so it needs a route to outside, and the listing does not publish the duct diameter or the maximum run. There is also a point that no listing in this category mentions and every buyer of a high capacity hood should know: residential building codes commonly require a makeup air supply for kitchen exhaust above a threshold well below 1000 cubic feet per minute, because a hood that powerful can depressurize a tight house and pull combustion gases back down a flue. That is a question for the local building authority before installation, not afterward, and it can add meaningfully to the cost of the job. Upkeep is straightforward: wash the baffle filters regularly, empty and clean the oil tray, and wipe the glass. There are no consumable filters to buy on a ducted hood. Two data oddities: the specification block records a fuel type of electric and a burner type of open, which are fields belonging to a cooktop rather than a hood, and the form factor field reads side draft while the design field reads under cabinet. Cooktops that would sit beneath it include the LG LCE3010SB and the Frigidaire FFEC3025UB, the alternative insert format is the Zephyr AK9234BS, and the whole category sits under range hoods.
Highlights
- Electrical details published in full at 120 volts, 60 hertz and 210 watts.
- An annual energy consumption figure of 100 kilowatt hours, which almost no listing gives.
- Hands free motion control, which avoids touching a panel with greasy hands.
- Baffle filters rather than mesh, which clean far better and go in a dishwasher.
- Duct kit, filter, oil tray and bracket are all included.
- HVI and ETL listings, and a slant vent shape that captures closer to the front burners.
Things To Consider
- The 1000 CFM airflow and the 38.5 decibel noise figure cannot describe the same speed setting.
- A hood this powerful commonly triggers a makeup air requirement in residential codes.
- The duct diameter and maximum run are not published.
- This is a ducted hood only, so a route to outside is required.
- The specification block carries cooktop fields such as fuel type and burner type.
- A glass touch panel above a cooking surface has no mechanical fallback.
Who it is not for
Apartments and condominiums that cannot duct to outside should not buy this, because it has no recirculating option described. Anyone in a tightly sealed modern house should resolve the makeup air question with a local inspector before ordering, since retrofitting makeup air after the fact is expensive. Kitchens that want a hood hidden inside custom cabinetry need an insert rather than a finished hood. And anyone buying primarily on the quiet figure should get FOTILE to confirm which speed 38.5 decibels applies to, because at full extraction it will not be that.
